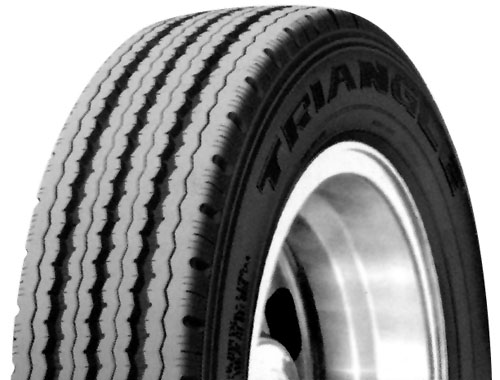

TR686
|
Size |
Ply Rating |
Load Index |
Speed index |
Standard Rim |
Inflated Section Width(mm) |
Overall Diameter,Inflated(mm) |
Max.Load(kg) |
Inflation Pressure(kPa) |
Pattern Depth(mm) |
Tube |
| 11R22.5 | 14 | 144/142 | M | 8.25 | 279 | 1054 | 2800/2650 | 720/720 | 14.5 | TL |
| 16 | 146/143 | M | 3000/2725 | 830/830 | TL | |||||
| 12R22.5 | 16 | 150/147 | M | 9.00 | 300 | 1085 | 3350/3075 | 830/830 | 14.5 | TL |
| 11R24.5 | 14 | 146/143 | M | 8.25 | 279 | 1104 | 3000/2725 | 720/720 | 14.5 | TL |
| 16 | 149/146 | M | 3250/3000 | 830/830 | TL | |||||
| 295/80R22.5 | 16 | 152/148 | M | 9.00 | 298 | 1044 | 3550/3150 | 850/850 | 15.5 | TL |
| 295/75R22.5 | 14 | 144/141 | M | 9.00 | 298 | 1014 | 2800/2575 | 760/760 | 14.5 | TL |
| 315/80R22.5 | 18 | 154/151 | M | 9.00 | 312 | 1076 | 3750/3400 | 830/830 | 14.5 | TL |
| 20 | 157/154 | L | 4125/3750 | 900/900 | TL |
