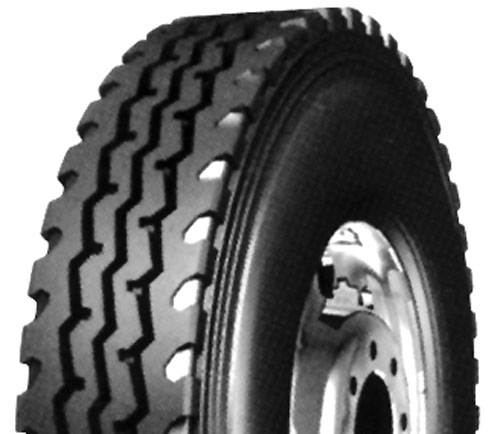

ST901
|
Size |
Ply Rating |
Speed index |
Standard Rim |
Inflation Pressure(kPa) |
Max.Load(kg) |
Inflated Section Width(mm) |
Overall Diameter,Inflated(mm) |
Pattern Depth(mm) |
| 9.00R20 | 16 | K | 7.0 | 900/900 | 2800/2650 | 259 | 1018 | 15.0 |
| 10.00R20 | 16 | L | 7.5 | 830/770 | 3000/2725 | 275 | 1052 | 16.0 |
| 10.00R20 | 18 | L | 7.5 | 930/930 | 3250/3000 | 275 | 1052 | 16.0 |
| 11.00R20 | 16 | L | 8.0 | 830/770 | 3350/3075 | 286 | 1082 | 16.5 |
| 11.00R20 | 18 | L | 8.0 | 930/930 | 3550/3250 | 286 | 1082 | 16.5 |
| 12.00R20 | 18 | L | 8.5 | 830/770 | 3750/3450 | 313 | 1122 | 17.0 |
| 12.00R24 | 18 | K | 8.5 | 830/770 | 4250/3875 | 313 | 1226 | 15.5 |
| 12.00R24 | 20 | K | 8.5 | 900/900 | 4500/4125 | 313 | 1226 | 15.5 |
| 11R22.5 | 14 | M | 8.25 | 720 | 2800/2650 | 279 | 1050 | 14.5 |
| 11R22.5 | 16 | M | 8.25 | 830 | 3000/2725 | 279 | 1050 | 14.5 |
